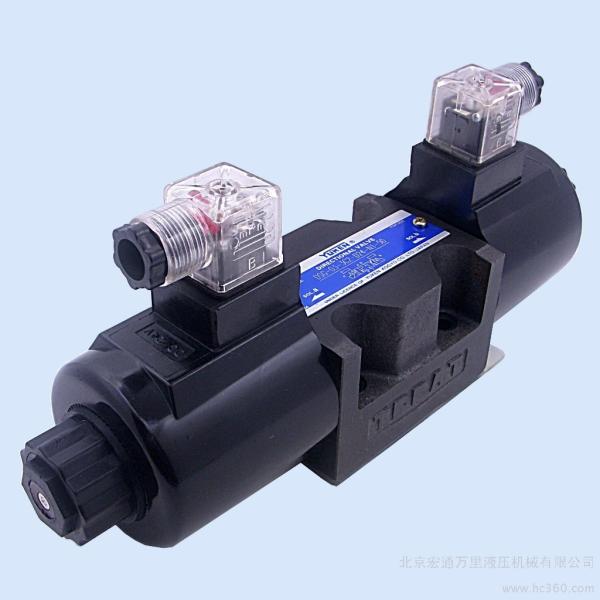

DSG solenoid valve

Features:

1. High Pressure & High Flow Rate
2. Low Pressure Drop
3. Compact & Small Mass
4. Stable Operation
5. SPECIFICATION:

6. DSG	02	2	B	2	A1	WEIGHT (kg)
   SERIES NUMBER	VALVE SIZE	NUMBER OF VALVE POSITION	SPOOL SPRING ARRANGEMENT	SPOOL TYPE	COIL TYPE
   DSG	02 NG6	2	B-SPRING OFFSET C-SPRING CENTER	2,3,4	AC110V AC220V AC380V DC12V DC24V	1.6
   		3		2,3,4,5,6,7,9,10,11,12		2
   	03 NG10	2	B-SPRING OFFSET C-SPRING CENTER	2,3,4		3.5
   		3		2,3,4,5,6,7,9,10,11,12		4.1

   SPOOL TYPEE	FLOW RANGE t/min
   	DSG02		DSG03
   	RATED FLOW	MAX. FLOW	RATED FLOW	MAX. FLOW
   3C3 3C4 3C5 3C10	25	40	50	80
   			45	80
   3C3 3C60	25	35	40	50
   2B2 2B8 2D2	25	40	45	80
   2B3 2D3	25	35	50	80
